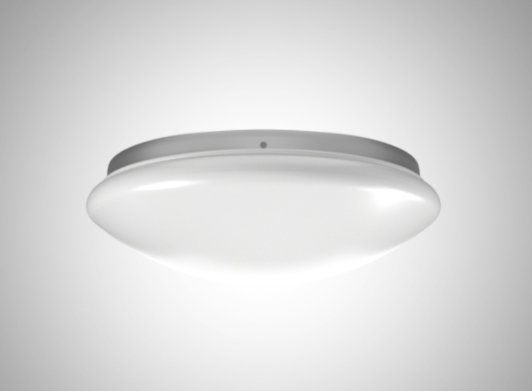

ELLEN Series
Due to their timeless, elegant design, the LED lights of the ELLEN series are ideal for ceiling or wall mounting in hallways, stairwells or functional rooms. An optionally integrated, invisible movement and light sensor as well as a good light yield guarantee a demand-driven, energy-efficient operation.
| Brand: ESYLUX |
| Manufacturer's warranty: 3 Years |
| Control System: ON/OFF |
| Detection Angle: 360° |
| Detection Range: Ø 20m |
| Installation Position: Wall/Ceiling |
| Installation Type: Surface |
| Conformity: CE, EAC, RoHS, SundaHus, WEEE |
Wall. Or. Ceiling.
- Available with protection types IP20 or IP44
- Impact protection IK07
- Easy to install using plug-in terminals
- Push terminals with through-wiring option
- Variants with integrated motion detector (HF) for motion and daylight-dependent switching of lighting switching output for master/master or master/slave networking
- Easy to change the field of detection, switch-off delay time and target brightness via DIP switch in the light
- Diffuser made from UV-resistant plastic
- Flicker-free light
- Glow wire test in accordance with IEC 60695-2-10 - 650 °C
- Luminous flux: 1250lm (113lm/W)
- UV-resistant plastic opal diffuser
- Height/Depth 95 mm, Ø 300 mm
- CE, EAC, RoHS, SundaHus, WEEE
Specifications
3000K
-

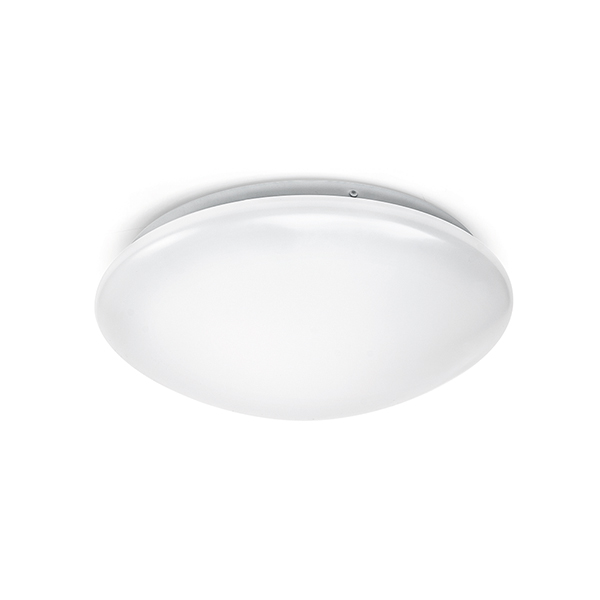

EO10850011 - IP20, without motion sensor -
-
EO10850004 - IP20, with motion sensor -
-
EO10850097 - IP44, without motion sensor -
-
EO10850080 - IP44, with motion sensor -
4000K
-
EO10850073 - IP20, without motion sensor -
-
EO10850066 - IP20, with motion sensor -
-
EO10850110 - IP44, without motion sensor -
-
EO10850103 - IP44, with motion sensor -
