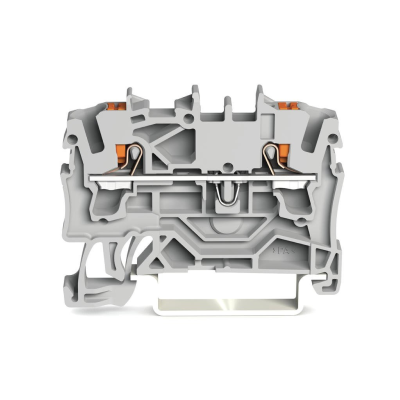

2202 - Single Deck Terminal Block

https://www.surgetech.com.cy/web/image/product.template/2062/image_1920?unique=00013e9

€ 0.67 0.67 EUR € 0.67

€ 0.67

Not Available For Sale

  • IEC/EN 60947-7-1 Spec
  • UL 1059 Spec
  • # of Levels
  • # of Jumper Slots
  • Nominal Cross Section
  • Mounting Type
  • Marking Level
  • Insulation Material
  • Connectable Conductor Materials
  • # of Conductors
  • All Conductor Types
  • Colour
  • Ex e II Spec

This combination does not exist.

Contact Us
IEC/EN 60947-7-1 Spec: 800V @ 24A
UL 1059 Spec: 600V @ 20A
# of Levels: 1
# of Jumper Slots: 2
Nominal Cross Section: 2.5mm²
Mounting Type: DIN-35 rail
Marking Level: Center/side marking
Insulation Material: Polyamide (PA66)
Connectable Conductor Materials: Copper
All Conductor Types: 0.25-4mm² / 22-12 AWG
Ex e II Spec: 550V @ 22A
