2002 - Single Deck Terminal Block

https://www.surgetech.com.cy/web/image/product.template/2060/image_1920?unique=00013e9

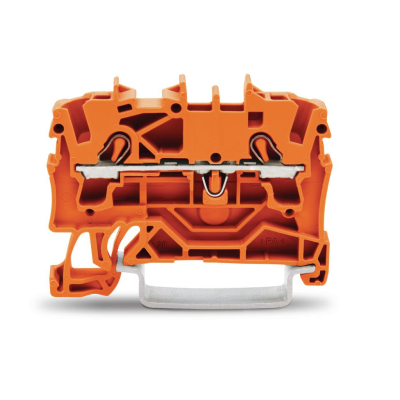

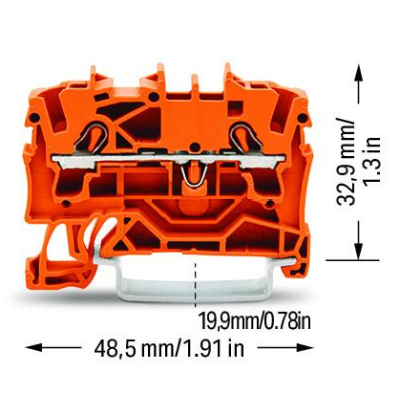

WAGO TOPJOB® S, 2-conductor through terminal block, 2.5mm²
- Push-in CAGE CLAMP® with operating slots
- for all conductor types, 0.25-4mm² / 22-12 AWG
- IEC/EN, 800V @ 32A, UL 486C, 600V @ 20A
- for DIN-35 mounting

€ 0.74 0.74 EUR € 0.74

€ 0.74

Not Available For Sale

(€ 0.88 / Units)
  • IEC/EN 60947-7-1 Spec
  • UL 1059 Spec
  • # of Levels
  • # of Jumper Slots
  • Nominal Cross Section
  • Mounting Type
  • Marking Level
  • Insulation Material
  • Connectable Conductor Materials
  • All Conductor Types
  • Colour
  • Ex e II Spec

This combination does not exist.

Contact Us
IEC/EN 60947-7-1 Spec: 800V @ 24A
UL 1059 Spec: 600V @ 20A
# of Levels: 1
# of Jumper Slots: 2
Nominal Cross Section: 2.5mm²
Mounting Type: DIN-35 rail
Marking Level: Center/side marking
Insulation Material: Polyamide (PA66)
Connectable Conductor Materials: Copper
All Conductor Types: 0.25-4mm² / 22-12 AWG
Ex e II Spec: 550V @ 22A

Prices do not include VAT

Delivery across Cyprus:
Same day or next working day if order is placed before 12pm

Terms and Conditions

You can find more detailed information regarding this product here
